OCI - Nova "categoria" de disco: Ultra High Performance

OCI - Nova

No ultimo dia 10 a Oracle lançou uma nova “categoria” para nosso serviço de armazenamento, coloco entre aspas pois para quem conhece nossos serviços, sabe que todos os nossos discos são baseados em SSDs e sua performance está ligada ao tamanho do volume e aos VPUs que você vincula e ele.

A nova categoria chamada de Ultra High Performance (ou UHP) é o equivalente à 120 VPUs por Giga(antes o máximo era 20VPU/GB na categoria High Performance), saímos de um máximo de 480MB/s de throughput com 35mil IOPS para incríveis 2,680 MB/s e até 300 mil IOPS, além disso, também foi aumentado a performance do High Performance, chegando até 614MB/s e 50 mil IOPS.

Aqui você encontra todos os detalhes de como funciona, mas abaixo listo os principais requisitos:

  • A VM precisa ter mais de 16 OCPUs
  • A VM precisa estar rodando um sistema operacional compatível(até o momento só suportamos Linux)
  • Apenas um disco UHP por VM
  • O disco pode ser entregue tanto via iSCSI ou Paravirtualizado

Uma dica que apanhei no começo é que para discos iSCSI você precisa ativar a opção Block Volume Management no OCI Cloud Agent da instância e criar uma policy que permita chamadas de API por ele(aqui você encontra ela) .

Benchmark

Deixando um pouco a parte teórica de lado, vamos ao que interessa, o UHP é realmente mais rápido? Fiz alguns testes bem simples nele.

Nos meus testes, usei uma VM com a seguinte configuração:

  • 18 OCPU
  • 24GB RAM
  • Oracle Linux 7.9
  • Disco paravirtualizado
  • Utilitário fio.

Disco de 650GB UHP:

[root@xyz opc]# fio --filename=/dev/sdb --direct=1 --rw=randrw --bs=256k --ioengine=libaio --iodepth=64 --numjobs=9 --time_based --group_reporting --name=iops --runtime=60
iops: (g=0): rw=randrw, bs=(R) 256KiB-256KiB, (W) 256KiB-256KiB, (T) 256KiB-256KiB, ioengine=libaio, iodepth=64
...
fio-3.7
Starting 9 processes
Jobs: 9 (f=9): [m(9)][100.0%][r=532MiB/s,w=531MiB/s][r=2126,w=2122 IOPS][eta 00m:00s]
iops: (groupid=0, jobs=9): err= 0: pid=3688: Mon Jun 14 23:59:47 2021
   read: IOPS=2198, BW=550MiB/s (576MB/s)(32.3GiB/60180msec)
    slat (usec): min=2, max=457, avg=11.98, stdev=12.52
    clat (usec): min=547, max=415642, avg=132643.35, stdev=68005.20
     lat (usec): min=559, max=415653, avg=132655.48, stdev=68005.38
    clat percentiles (usec):
     |  1.00th=[  1663],  5.00th=[ 21103], 10.00th=[ 43779], 20.00th=[ 69731],
     | 30.00th=[ 87557], 40.00th=[106431], 50.00th=[130548], 60.00th=[154141],
     | 70.00th=[177210], 80.00th=[200279], 90.00th=[229639], 95.00th=[240124],
     | 99.00th=[252707], 99.50th=[256902], 99.90th=[316670], 99.95th=[350225],
     | 99.99th=[396362]
   bw (  KiB/s): min=46592, max=358912, per=11.11%, avg=62534.99, stdev=26194.28, samples=1080
   iops        : min=  182, max= 1402, avg=244.25, stdev=102.32, samples=1080
  write: IOPS=2201, BW=550MiB/s (577MB/s)(32.4GiB/60180msec)
    slat (usec): min=4, max=416, avg=17.50, stdev=13.18
    clat (usec): min=809, max=319541, avg=129098.20, stdev=61645.50
     lat (usec): min=825, max=319556, avg=129115.84, stdev=61645.59
    clat percentiles (msec):
     |  1.00th=[    3],  5.00th=[   14], 10.00th=[   40], 20.00th=[   68],
     | 30.00th=[   96], 40.00th=[  123], 50.00th=[  140], 60.00th=[  155],
     | 70.00th=[  167], 80.00th=[  182], 90.00th=[  205], 95.00th=[  224],
     | 99.00th=[  247], 99.50th=[  253], 99.90th=[  259], 99.95th=[  264],
     | 99.99th=[  305]
   bw (  KiB/s): min=45056, max=394752, per=11.13%, avg=62717.56, stdev=29313.89, samples=1080
   iops        : min=  176, max= 1542, avg=244.96, stdev=114.51, samples=1080
  lat (usec)   : 750=0.06%, 1000=0.18%
  lat (msec)   : 2=0.91%, 4=1.08%, 10=1.54%, 20=1.68%, 50=7.47%
  lat (msec)   : 100=21.16%, 250=64.82%, 500=1.11%
  cpu          : usr=0.43%, sys=0.83%, ctx=257284, majf=0, minf=118
  IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=99.8%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
     issued rwts: total=132297,132511,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=64

Run status group 0 (all jobs):
   READ: bw=550MiB/s (576MB/s), 550MiB/s-550MiB/s (576MB/s-576MB/s), io=32.3GiB (34.7GB), run=60180-60180msec
  WRITE: bw=550MiB/s (577MB/s), 550MiB/s-550MiB/s (577MB/s-577MB/s), io=32.4GiB (34.7GB), run=60180-60180msec

Disk stats (read/write):
  sdb: ios=132291/132495, merge=0/0, ticks=17502537/17083496, in_queue=34453607, util=99.93%
[root@xyz opc]#

Disco de 2.6T UHP:

[root@xyz opc]# fio --filename=/dev/sdb --direct=1 --rw=randrw --bs=256k --ioengine=libaio --iodepth=64 --numjobs=9 --time_based --group_reporting --name=iops --runtime=60
iops: (g=0): rw=randrw, bs=(R) 256KiB-256KiB, (W) 256KiB-256KiB, (T) 256KiB-256KiB, ioengine=libaio, iodepth=64
...
fio-3.7
Starting 9 processes
Jobs: 9 (f=9): [m(9)][100.0%][r=1299MiB/s,w=1318MiB/s][r=5196,w=5270 IOPS][eta 00m:00s]
iops: (groupid=0, jobs=9): err= 0: pid=4753: Tue Jun 15 00:02:43 2021
   read: IOPS=5361, BW=1340MiB/s (1406MB/s)(79.3GiB/60549msec)
    slat (usec): min=2, max=424, avg=11.93, stdev=13.91
    clat (usec): min=505, max=1128.9k, avg=52459.37, stdev=88465.58
     lat (usec): min=534, max=1128.9k, avg=52471.46, stdev=88465.63
    clat percentiles (usec):
     |  1.00th=[    685],  5.00th=[    783], 10.00th=[    857],
     | 20.00th=[   1045], 30.00th=[   1516], 40.00th=[   4490],
     | 50.00th=[  17433], 60.00th=[  40633], 70.00th=[  58459],
     | 80.00th=[  82314], 90.00th=[ 135267], 95.00th=[ 193987],
     | 99.00th=[ 497026], 99.50th=[ 566232], 99.90th=[ 633340],
     | 99.95th=[ 666895], 99.99th=[1035994]
   bw (  KiB/s): min=114176, max=410624, per=11.20%, avg=153739.73, stdev=30891.07, samples=1080
   iops        : min=  446, max= 1604, avg=600.49, stdev=120.68, samples=1080
  write: IOPS=5365, BW=1341MiB/s (1407MB/s)(79.3GiB/60549msec)
    slat (usec): min=3, max=929, avg=17.38, stdev=14.90
    clat (usec): min=772, max=984549, avg=54859.07, stdev=85136.92
     lat (usec): min=787, max=984566, avg=54876.61, stdev=85136.91
    clat percentiles (usec):
     |  1.00th=[   955],  5.00th=[  1045], 10.00th=[  1123], 20.00th=[  1303],
     | 30.00th=[  1614], 40.00th=[  4359], 50.00th=[ 18744], 60.00th=[ 42206],
     | 70.00th=[ 60031], 80.00th=[ 85459], 90.00th=[154141], 95.00th=[240124],
     | 99.00th=[387974], 99.50th=[434111], 99.90th=[574620], 99.95th=[624952],
     | 99.99th=[918553]
   bw (  KiB/s): min=  512, max=418304, per=11.16%, avg=153304.63, stdev=32820.87, samples=1084
   iops        : min=    2, max= 1634, avg=598.79, stdev=128.22, samples=1084
  lat (usec)   : 750=1.67%, 1000=8.62%
  lat (msec)   : 2=23.63%, 4=5.37%, 10=5.80%, 20=5.89%, 50=13.36%
  lat (msec)   : 100=19.64%, 250=12.16%, 500=3.22%, 750=0.61%, 1000=0.02%
  cpu          : usr=1.09%, sys=1.95%, ctx=606677, majf=0, minf=129
  IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=99.9%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
     issued rwts: total=324637,324886,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=64

Run status group 0 (all jobs):
   READ: bw=1340MiB/s (1406MB/s), 1340MiB/s-1340MiB/s (1406MB/s-1406MB/s), io=79.3GiB (85.1GB), run=60549-60549msec
  WRITE: bw=1341MiB/s (1407MB/s), 1341MiB/s-1341MiB/s (1407MB/s-1407MB/s), io=79.3GiB (85.2GB), run=60549-60549msec

Disk stats (read/write):
  sdb: ios=324635/324848, merge=0/0, ticks=16893064/17708514, in_queue=34284256, util=100.00%

Gráficos

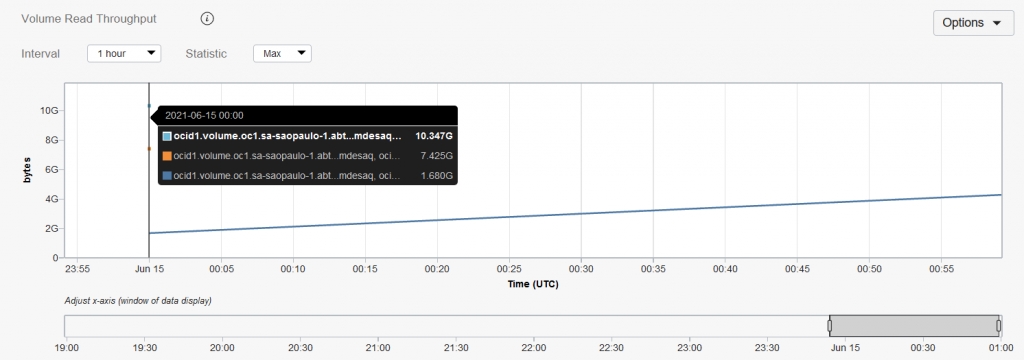

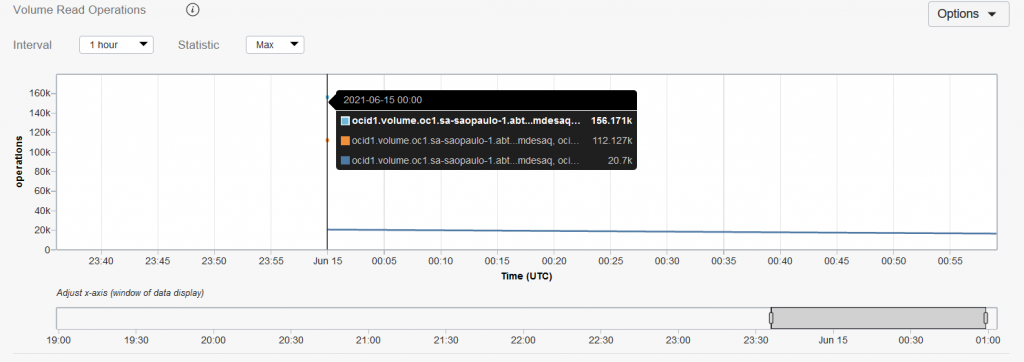

Leitura

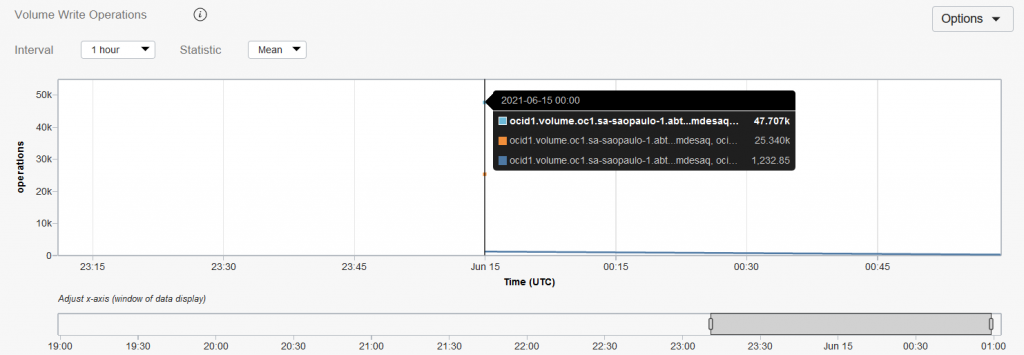

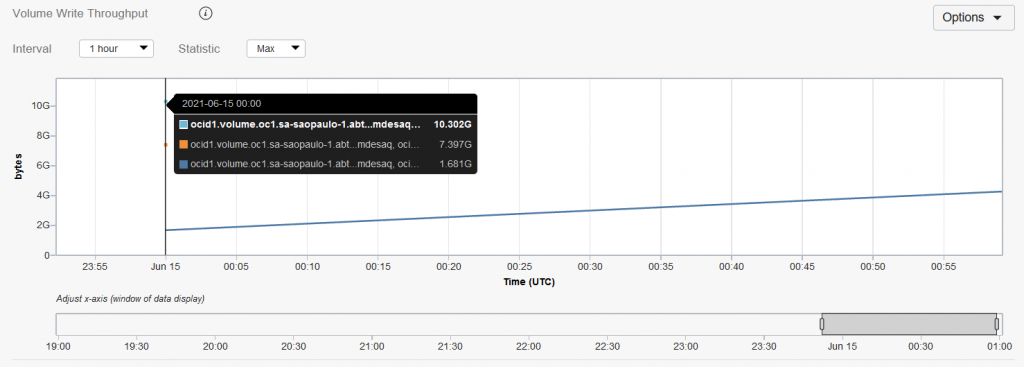

Escrita

É isso pessoal, qualquer duvida que tiverem, podem me contactar 🙂
